Follow ALL SAFETY GUIDELINES AND RECOMMENDATIONS provided by the manufacturers of your tools, and any chemicals such as glue and finishes you use in this project. YOU are responsible for your safety, so use common sense when working in the shop!

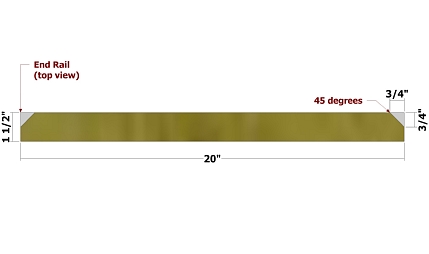

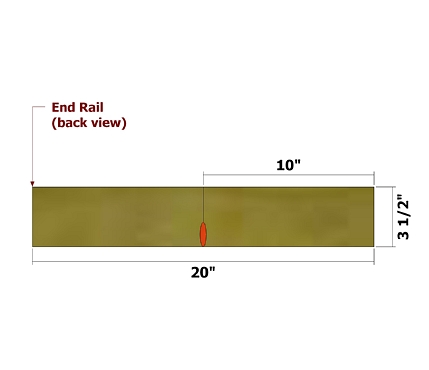

InstructionsCut 45-degree bevels as shown in the top layout. Set your pocket hole jig and drill bit for 1 1/2" stock for drilling the pocket hole on the back of the End Rail (as shown in back view). This will be on the opposite side from the bevels.

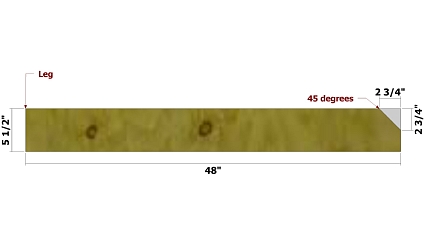

Use the layout to create the Legs.

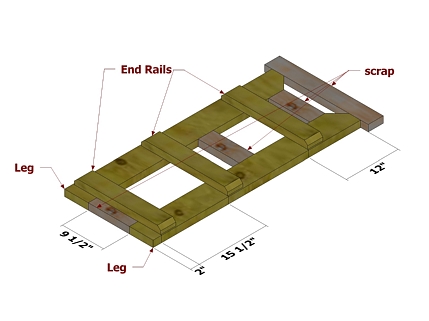

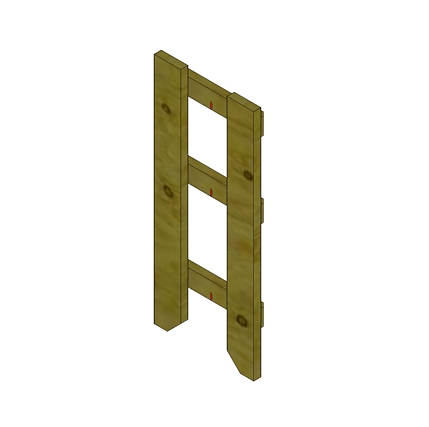

Position the parts as shown and attach using 2 1/2" deck screws. Use pieces of scrap cut to 9 1/2" for spacing the Legs, and a long piece of scrap clamped to your work surface to align the bottom of the Legs. Make two assemblies.

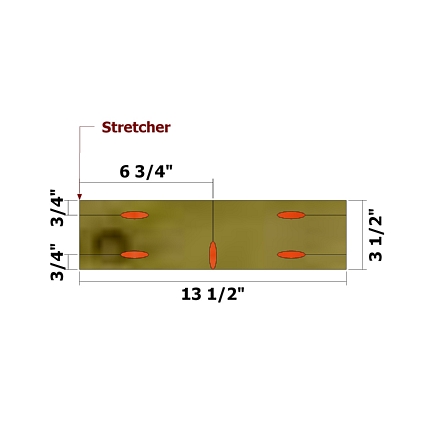

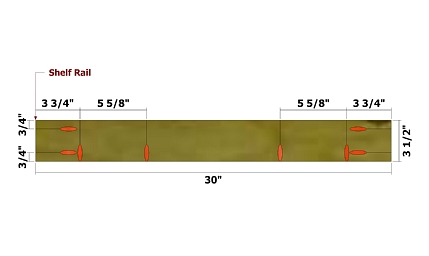

Set your pocket hole jig and drill bit for 1 1/2" stock for drilling the pocket holes.

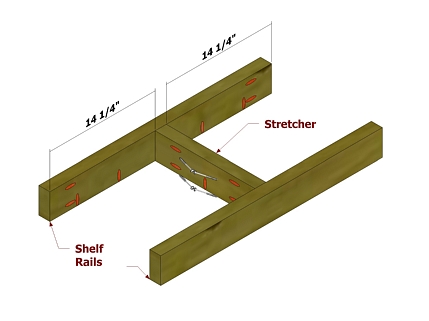

Position the parts as shown and attach using 2 1 /2" pocket hole screws. Make three assemblies.

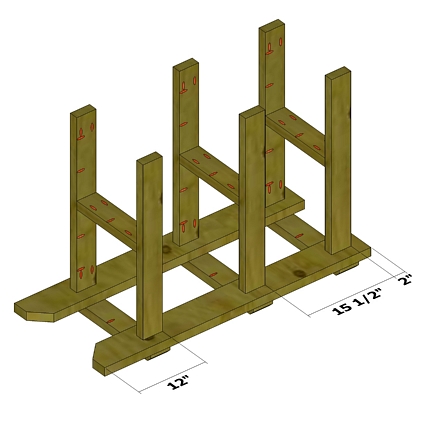

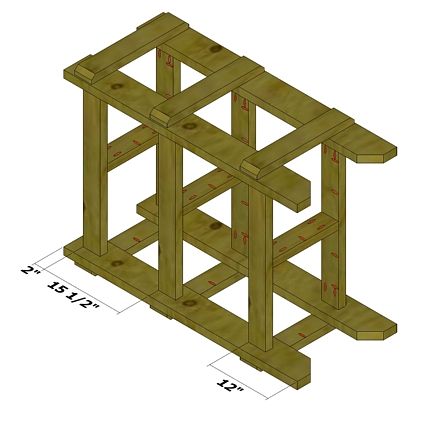

Position the assemblies as shown and attach using 2 1 /2" pocket hole screws.
What You’ll Need
Lumber4 - 2 x 4 x 82 - 2 x 6 x 82 - 2 x 6 x 101 - 2 x 10 x 10(availability will vary) Hardware & Supplies2 1 /2" pocket hole screws2 1 /2" deck screwswood gluepaint, stain, polyurethane, sealer Toolsmiter sawsander/belt sanderdrill/driverKreg Pocket Hole Jigclampssquare
Parts

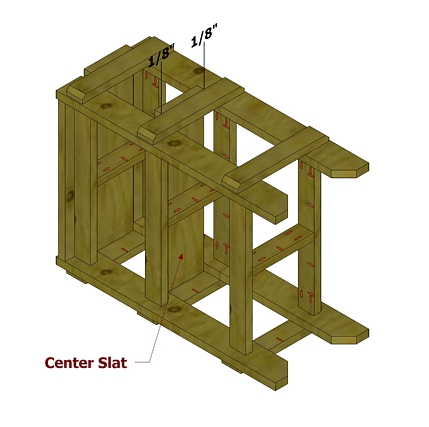

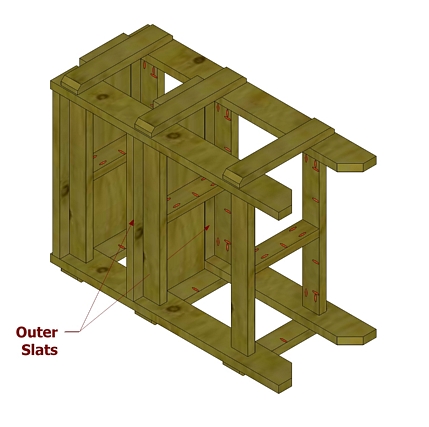

End Rails (6) - 1 1 /2 x 3 1 /2 x 20Legs (4) - 1 1 /2 x 5 1 /2 x 48Shelf Rails (6) - 1 1 /2 x 3 1 /2 x 30Stretchers (2) - 1 1 /2 x 3 1 /2 x 1 3 1 /2Center Slats (3) - 1 1 /2 x 9 1 /4 x 36Outer Slats (6) - 1 1 /2 x 5 1 /2 x 30 All parts are listed in actual dimensions. Refer to the Cutting Diagram below as a guide for determining the specific board from which to cut the parts.
